Trifield EMF Meter – Bench Test
- Mar 15
- 6 min read
Updated: Mar 19
(Priced from $299 AUD to $429 AUD, 2026 Edition – 3-in-1 Class)

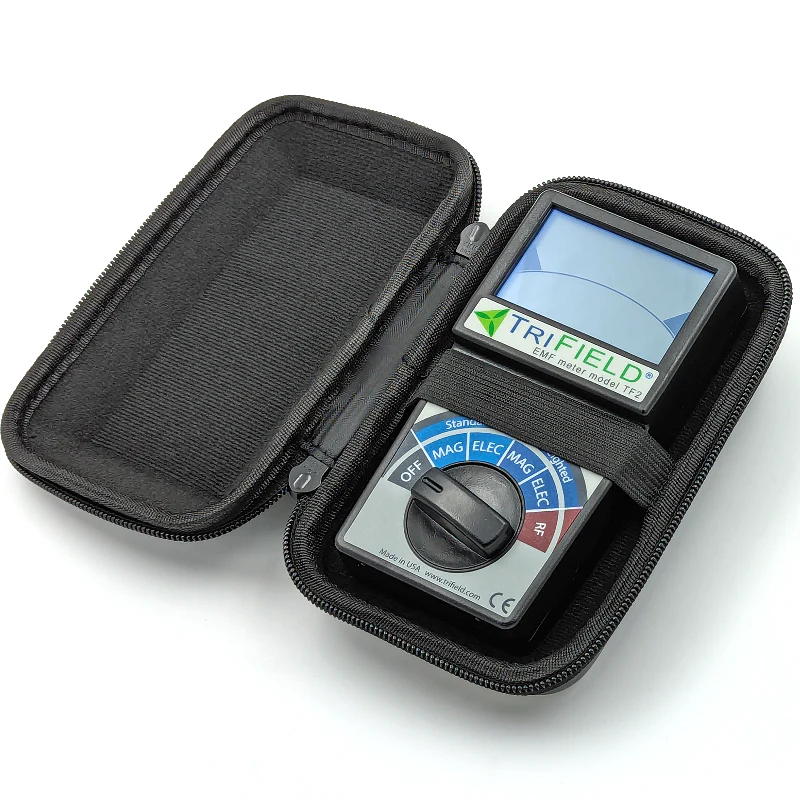

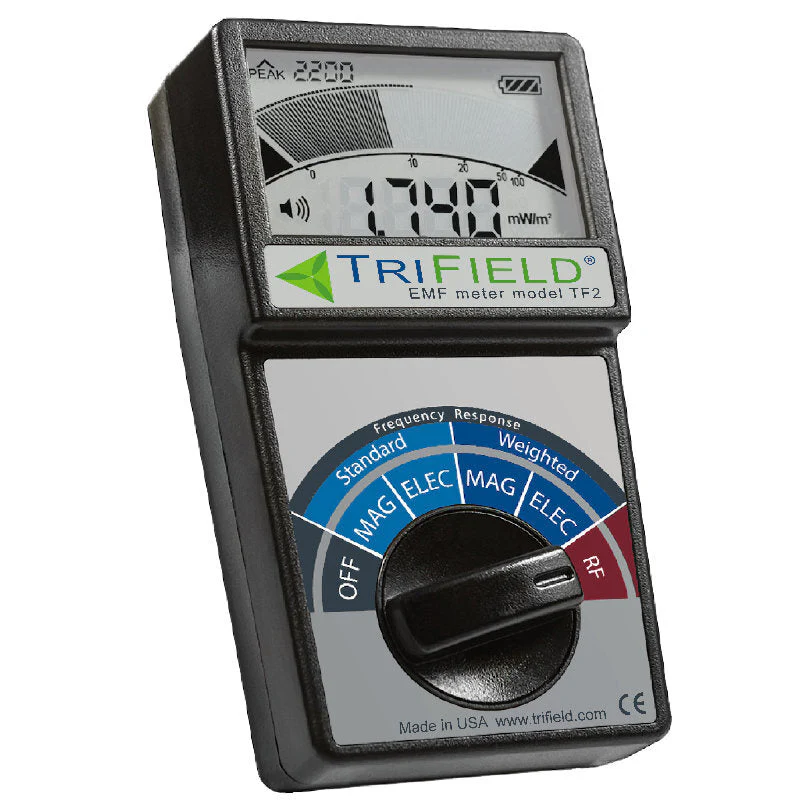

Opening the box of the world’s best-selling 3-in-1 EMF meter does not disappoint. The product is very well packaged and presented like a high-end consumer retail device. The build quality and digital display are impressive, and the “Made in USA” marking on the front reinforces the sense of quality assurance.
Its large size and solid weight give it the feel of classic American engineering — sturdy and substantial in the hand.
The 9-volt battery comes pre-installed, so you are ready to start measuring straight out of the box. One small inconvenience is the display backlight button; you have to remove the battery cover on the back to access it. If you are doing quick spot checks at night or in poorly lit areas, a head torch will be helpful.
The TF2 also features sound effects that increase as the field strength rises, producing what sounds like Star Wars–style arcade game effects. While this can be entertaining (…for some), it does not reproduce the actual sound characteristics of electromagnetic noise being measured the way some other meters do, so it cannot be used to audibly identify a source. The sound function can be turned off via the sound button, also located behind the battery cover.
Measurement Equipment Used
Meters: Gigahertz Solutions ME3951A, Safe and Sound Pro II, Mito Meter 2.0, Aaronia Spectran V5, Aaronia NF5035 (Full Spec), Super Esmog Spion.
Antennas: Aaronia BicoLOG® 20100x, Aaronia OmniLOG® 30800
Magnetic Field Measurements
The TF2 covers 40 Hz to 100 kHz, which is an impressive range compared to its competitors, and like most American meters it displays measurements in milliGauss (mG) rather than nanoTesla (nT).
Due to its physical size, it is not ideal for measuring very small devices such as smart watches or AirPods. However, it performs well when measuring larger sources including laptops, phones, power cables, vehicles, and general household electrical systems.
When it comes to measuring background dynamic magnetic fields from the power grid and power lines, the 2026 TF2 performed better than expected. The meter offers two magnetic field modes:
Standard Mode — Measures the actual strength of the electromagnetic field across the full frequency range.
Weighted Mode — Highlights higher-frequency EMF from modern electronics.
In my testing, the Weighted Mode provided a better interpretation of low-level background fields in some situations, as mentioned below. Under 1 mG (100 nT) it was noticeably more responsive, while Standard Mode detected very little under 0.5 mG (50 nT).
In suburban environments where transformers, feeder junction poles, road intersections, and areas with heavy electronic loads are present, harmonic multiples of the 50 Hz power frequency are often detected (for example 150 Hz and higher). In some locations these harmonics can reach up to half the strength of the fundamental 50 Hz field. (The same occurs in 60 Hz powered countries.)
Both the TF2 and the Mito Meter 2.0 are among the few 3-in-1 meters that detect these higher-frequency multiples reasonably well using the weighted measurements, producing higher readings when harmonics above 50 Hz are present. However, the need to switch between Weighted and Standard modes can make the TF2 slightly more complicated to interpret correctly.
The TF2 performs close enough to its specifications and is a capable magnetic field detector. In testing it tended to under-read by roughly 20% when measuring 50 Hz background power-grid levels above 1 mG (100 nT).
Magnetic Field Score: 8 / 10
Electric Field Measurements
The electric field mode once again covers an impressive 40 Hz to 100 kHz range measuring in Volts per Meter (V/m) and performs better than most other 3-in-1 meters.
However, it is still not as sensitive as similarly priced dedicated semi-professional low-frequency electric field meters. There are more senstive electric feild detecting 3-in-1's out there.
In practical terms, the TF2’s 1 V/m threshold behaves closer to about 5 V/m in some suitations. Missing that lower range can be significant, as a 5 V/m detection gap is quite large when assessing sleeping areas or low-exposure environments.
Once the electric field rises above 5 V/m, the TF2 performs well and produces stable and accurate readings. However, it does not measure down to its specified 1 V/m.
Electric Field Score: 4 / 10
RF (Radio Frequency) Measurements
The RF mode detects frequencies between 40 MHz and 6 GHz, measuring in milliwatts per square meter (mW/m²), not microwatts per square meter (µW/m²) as preferred by most non Industry EMF professionals. Today’s RF meters should measure up to at least 7 GHz; otherwise, they will miss Wi-Fi 7 frequencies above 6 GHz. That said, this meter is not really designed to detect today’s digital microwave emissions and is better suited to measuring analog broadcast signals. It cannot detect Wi-Fi or Bluetooth unless the signal is very strong.
When it comes to measuring analog FM radio signals, the TF2 is actually quite accurate. In testing it displayed a PEAK 0.025 mW/m² (25 µW/m²) from FM broadcast signals, which matched my RF spectrum analyzer results almost perfectly, with an average of 0.01 mW/m² (10 µW/m²)
However, this accuracy also exposes one of the meter’s main limitations — apart from its slow RF sampling speed. Because FM radio occupies 87.5 MHz to 108.0 MHz, the TF2 will constantly detect these dominant broadcast signals. As a result, the TF2’s minimum readings will effectively always show elevated radiation levels, even when other RF meters — such as the popular Safe & Sound Pro II — show zero.
This means the meter struggles to detect weaker digital RF signals, which greatly limits its usefulness as an RF screening tool — especially if you live near a city or within range of FM reception, which is basically everyone.
In addition, its slow RF sample rate means it often fails to detect low-level RF signals unless the meter is placed within the near field of the source — essentially right on top of it.
For example:
My low-power 5 GHz Wi-Fi router was not detected by the TF2 until the meter was placed 2 inches away.
At the same time, the Safe & Sound Pro II and Mito Meter 2.0 were detecting 0.1 mW/m² (100 µW/m²) from 10 meters away.
With both 2.4 GHz and 5 GHz Wi-Fi channels active in low-power mode, the TF2 still could not detect the signals at 3 meters while at the same distance the other meters measured 0.5 mW/m² (500 µW/m²).
In practical terms, this makes the TF2 ineffective for detecting everyday digital wireless signals at medium to low exposure levels.
Technically, the RF score should be 0/10, but I’ve given it 1/10 because it can still complement RF meters that don’t detect FM radio or low-frequency electromagnetic fields, such as the Safe & Sound Pro II and some Gigahertz Solutions RF meters.
It’s worth noting that traditional Building Biology guidelines historically allowed RF limits up to 10× higher for non-pulsed analog broadcasts like FM radio, compared with modern high-frequency pulsed digital wireless signals. That’s why most RF meters today start at 100-200 MHz, not 40 MHz, focusing on the higher microwave frequencies and not allowing the radio stations to drown out the more biologically disruptive signals. This isn't a problem when using RF spectrum analyzes, however, they are expensive and complex to operate.
The only meters that can reliably cover the full range from 40 MHz to 7 GHz+ are the Esmog Spion and high-end Gigahertz Solutions RF kits — and yes, they’re not cheap.
Overall, the TF2 won’t see much under 0.1 mW/m² (100 µW/m²) when it comes to our everyday main frequencies of concern, which unfortunately places it in the same category as Temu $40 3-in-1 meters as far as RF performance goes. RF (Radio Frequency) Score: 1 / 10
Pros
3-axis magnetic sensor
Good magnetic field detection
Excellent build quality
Large easy-to-read display
High-quality packaging and presentation
Looks professional during use
Fun audio mode with arcade-style sound effects
Cons
No single-axis measurement option
RF performance severely limited
Limited low-level electric field sensitivity
Display backlight switch located inside battery compartment
No USB monitoring software option
No RF sound demodulation or RF sound signature
No built-in event recording or playback options
Not rechargeable, nor has a USB power option
Final Verdict
It's a very simple meter to use; however, most people will struggle to understand the difference between the standard and weighted modes or how to use them properly.
The TF2 would suit someone who already owns a good RF meter such as the Safe & Sound Pro II and wants a device for measuring low-frequency magnetic and electric fields, as well as seeing what level of FM radio signal is present. However, even in that scenario, its electric field sensitivity is not adequate for screening bedrooms or living areas.
Since the TF2 is not an effective RF meter, a more practical approach would be to purchase a semi-professional entry-level Gigahertz Solutions meter for low-frequency measurements and combine it with a Safe & Sound Classic II RF meter, although that will cost a little more.
Alternatively, if you are on a budget and want a true pocket-sized 3-in-1 screening EMF meter, the Mito Meter 2.0 remains an undisputed industry-class leader, and costs less.
